Needle Roller Bearing with Inner Ring NA49/28 open 28x45x17 mm

The needle bearing NA49/28 has thin cylinders as rolling elements and can absorb high radial forces with its massive bearing rings. It is suitable for space-saving installation. Main dimensions according to DIN 617.

Technical Data

Inside (mm):	28
Outside (mm):	45
Width (mm):	17
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Inner Ring:	yes
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0980 kg

Item number: NA49/28

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 9.55

pcs

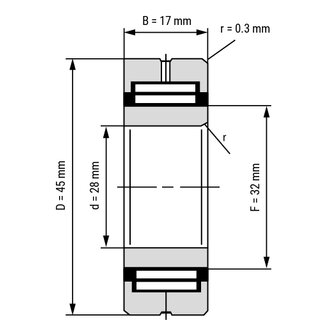

Technical Scribble
