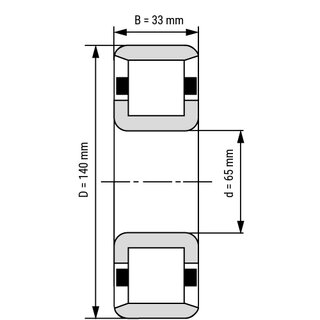

Cylindrical Roller Bearing N313 E 65x140x33 mm

Due to the cylindrical rollers, the cylindrical roller bearing N313-E has large contact surfaces between rolling elements and bearing rings. It is suitable for very high radial loads and high speeds. Main dimensions according to DIN 5412-1.

Technical Data

Inside (mm):	65
Outside (mm):	140
Width (mm):	33
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,018
Tolerance for width (mm):	0/-0,15
Design:	N
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	2,3500 kg

Item number: N313-E

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 96.46
