Cylindrical Roller Bearing N217 E 85x150x28 mm

Due to the cylindrical rollers, the cylindrical roller bearing N217-E has large contact surfaces between rolling elements and bearing rings. It is suitable for high radial loads and high speeds. Main dimensions according to DIN 5412-1.

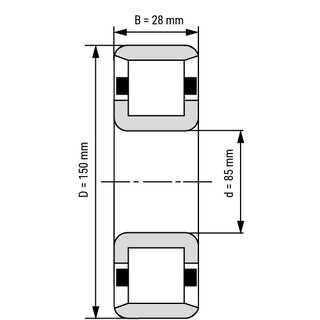

Technical Data

Inside (mm):	85
Outside (mm):	150
Width (mm):	28
Tolerance for inside (mm):	0/-0,02
Tolerance for outside (mm):	0/-0,018
Tolerance for width (mm):	0/-0,2
Design:	N
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	1,9000 kg

Item number: N217-E

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 83.38

pcs
