- MTE-415
Technical Scribble

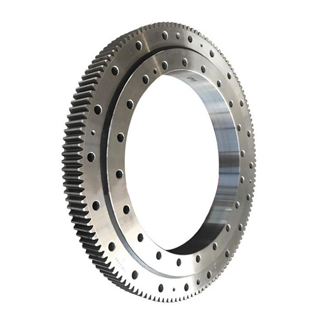

MTE-415 16.25"x24.65"x
Technical Data
| Specifications | |
| Part Number | MTE-415 |
| Moment Load Rating (Crm) | 159200ft-lbs | 710.714KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 24.650" | 626.11mm |
| Inside Diameter of Inner Ring (di) | 16.250" | 412.75mm |
| Height of Overall Bearing Assembly (H) | 2.375" | 60.33mm |
| Height of Inner Ring (Hi)/Height of Outer Ring (Ho) | 2.063" | 52.4mm |
| Approximate Weight (lbs) | 132lbs | 59.874KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 22.250" | 565.15mm |
| Number Holes in Outer Ring (no) | 16 |
| Size of Hole in Outer Ring (Bo) | 0.813" |
| Bolt Circle in Inner Ring (Li) | 17.750" | 450.85mm |
| Number Holes in Inner Ring (ni) | 20 |
| Size of Hole in Inner Ring (Bi) | 0.813" |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Tooth form | SD |
| Pitch diameter of gear(D2) | 24.25" | 615.95mm |
| Diametral pitch(Pd) | 4 |
| Number of gear teeth(z2) | 97 |
| Face width of gear teethαb2) | 2.063" |
Item number: MTE-415
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
price:Inquiry
pcs
Technical Scribble
Technical Data
| Specifications | |
| Part Number | MTE-415 |
| Moment Load Rating (Crm) | 159200ft-lbs | 710.714KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 24.650" | 626.11mm |
| Inside Diameter of Inner Ring (di) | 16.250" | 412.75mm |
| Height of Overall Bearing Assembly (H) | 2.375" | 60.33mm |
| Height of Inner Ring (Hi)/Height of Outer Ring (Ho) | 2.063" | 52.4mm |
| Approximate Weight (lbs) | 132lbs | 59.874KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 22.250" | 565.15mm |
| Number Holes in Outer Ring (no) | 16 |
| Size of Hole in Outer Ring (Bo) | 0.813" |
| Bolt Circle in Inner Ring (Li) | 17.750" | 450.85mm |
| Number Holes in Inner Ring (ni) | 20 |
| Size of Hole in Inner Ring (Bi) | 0.813" |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Tooth form | SD |
| Pitch diameter of gear(D2) | 24.25" | 615.95mm |
| Diametral pitch(Pd) | 4 |
| Number of gear teeth(z2) | 97 |
| Face width of gear teethαb2) | 2.063" |
