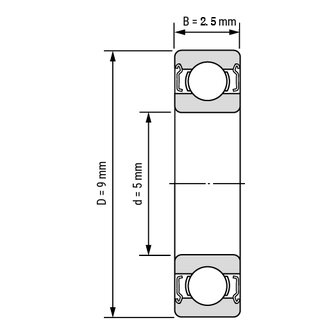

Technical Scribble
Miniature Deep Groove Ball Bearing MR95 Open / MR 095 Oil 5x9x2.5 mm
For use in special conditions. The miniature ball bearing MR-95 is small and suitable for installation with limited space and on thin shafts. It can withstand very high speeds. It has metric special dimensions.
Technical Data
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Part Number | MR95 |
| For Shaft Diameter | 5 mm |
| Bore Dia (d) | 5 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| For Housing ID | 9mm |
| Outer Dia (D) | 9mm |
| Outer Dia Tolerance | -0.008mm to 0 |
| Width (B) | 2.5mm |
| Width Tolerance | -0.12mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | 300 Series Stainless Steel |
| Shield Material | 300 Series Stainless Steel |
| Dynamic Load Rating (Cr) (Newtons) | 366 |
| Static Load Rating (Cor) (Newtons) | 135 |
| Max Speed (Grease) (X1000 RPM) | 50 |
| Max Speed (Oil) (X1000 RPM) | 60 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.002mm to 0.013mm |
| RoHS | Compliant |
| Ball Qty | 8 |
| Ball Dia | 1.2000mm |
| Weight (grams) | 0.54 |
Item number: MR-95
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 1.00
pcs
Technical Scribble
Technical Data
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Part Number | MR95 |
| For Shaft Diameter | 5 mm |
| Bore Dia (d) | 5 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| For Housing ID | 9mm |
| Outer Dia (D) | 9mm |
| Outer Dia Tolerance | -0.008mm to 0 |
| Width (B) | 2.5mm |
| Width Tolerance | -0.12mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | 300 Series Stainless Steel |
| Shield Material | 300 Series Stainless Steel |
| Dynamic Load Rating (Cr) (Newtons) | 366 |
| Static Load Rating (Cor) (Newtons) | 135 |
| Max Speed (Grease) (X1000 RPM) | 50 |
| Max Speed (Oil) (X1000 RPM) | 60 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.002mm to 0.013mm |
| RoHS | Compliant |
| Ball Qty | 8 |
| Ball Dia | 1.2000mm |
| Weight (grams) | 0.54 |
