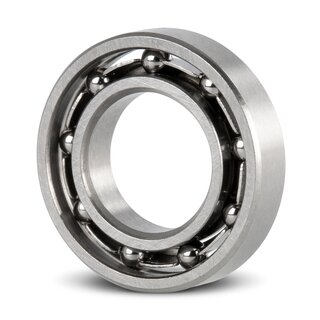

Miniature Deep Groove Ball Bearing MR74 W2 open C3 / MR 074 W2 open C3 dry 4x7x2 mm

For use in special conditions. The miniature ball bearing MR-74-W2-C3 is small and suitable for installation with limited space and on thin shafts. It can withstand very high speeds. It has metric special dimensions.

Technical Data

Inside (mm):	4
Outside (mm):	7
Width (mm):	2
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	C3 (increased clearance)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	dry
Magnetic:	yes
Product weight:	0,0002 kg

Item number: MR-74-W2-C3-DRY

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day
