Miniature Flanged Ball Bearing MF 84 W2 open / MF84 W2 open oiled 4x8x2 mm

For use in special conditions. The miniature ball bearing MF-84-W2 is small and suitable for installation with limited space and on thin shafts. With the flange, it can be fixed axially, e.g. in bore holes. It can withstand very high speeds. It has metric special dimensions.

Technical Data

Inside (mm):	4
Outside (mm):	8
Width (mm):	2
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Tolerance for flange-outside (mm):	0,22/-0,036
Flange (mm):	9.2
Flange Width (mm):	0.6
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	yes
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,0004 kg

Item number: MF-84-W2-OIL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 2.01

pcs

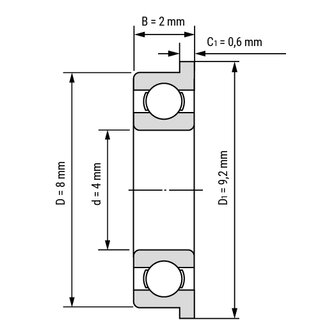

Technical Scribble
