Miniature Flanged Ball Bearing MF 83 ZZ / 2Z / MF83 ZZ / 2Z 3x8x3 mm

For use in special conditions. The miniature ball bearing MF-83-ZZ / 2Z is small and suitable for installation with limited space and on thin shafts. With the flange, it can be fixed axially, e.g. in bore holes. It can withstand very high speeds. It has metric special dimensions.

Technical Data

Inside (mm):	3
Outside (mm):	8
Width (mm):	3
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Tolerance for flange-outside (mm):	0,22/-0,036
Flange (mm):	9.2
Flange Width (mm):	0.6
Rows Of Balls:	single row
Seal:	ZZ
Internal Clearance:	CN (Standard)
Flange:	yes
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Sealing material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,0008 kg

Item number: MF-83-ZZ

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 1.84

pcs

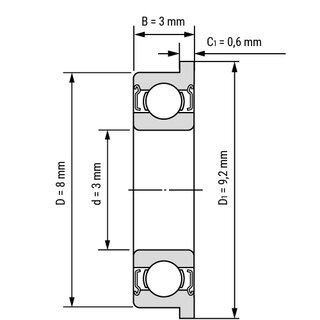

Technical Scribble

Technical Data

Inside (mm):	3
Outside (mm):	8
Width (mm):	3
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Tolerance for flange-outside (mm):	0,22/-0,036
Flange (mm):	9.2
Flange Width (mm):	0.6
Rows Of Balls:	single row
Seal:	ZZ
Internal Clearance:	CN (Standard)
Flange:	yes
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Sealing material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,0008 kg
