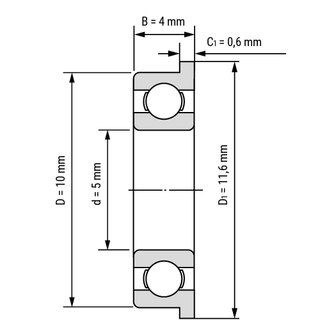

Technical Scribble
Miniature Flanged Ball Bearing MF 105 open / MF105 open 5x10x4 mm
For use in special conditions. The miniature ball bearing MF-105 is small and suitable for installation with limited space and on thin shafts. With the flange, it can be fixed axially, e.g. in bore holes. It can withstand very high speeds. It has metric special dimensions.
Technical Data
| Inside (mm): | 5 |
| Outside (mm): | 10 |
| Width (mm): | 4 |
| Tolerance for inside (mm): | 0/-0,008 |
| Tolerance for outside (mm): | 0/-0,008 |
| Tolerance for width (mm): | 0/-0,12 |
| Tolerance for flange-outside (mm): | 0,27/-0,043 |
| Flange (mm): | 11.6 |
| Flange Width (mm): | 0.8 |
| Rows Of Balls: | single row |
| Seal: | open |
| Internal Clearance: | CN (Standard) |
| Flange: | yes |
| Slot & Snap Ring: | no |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Full Complement Ball Set: | no |
| Tolerance Class: | ABEC 1 / P0 |
| Type of lubrication: | greased |
| Magnetic: | yes |
| Product weight: | 0,0011 kg |
Item number: MF-105
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 1.84
pcs
Technical Scribble
Technical Data
| Inside (mm): | 5 |
| Outside (mm): | 10 |
| Width (mm): | 4 |
| Tolerance for inside (mm): | 0/-0,008 |
| Tolerance for outside (mm): | 0/-0,008 |
| Tolerance for width (mm): | 0/-0,12 |
| Tolerance for flange-outside (mm): | 0,27/-0,043 |
| Flange (mm): | 11.6 |
| Flange Width (mm): | 0.8 |
| Rows Of Balls: | single row |
| Seal: | open |
| Internal Clearance: | CN (Standard) |
| Flange: | yes |
| Slot & Snap Ring: | no |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Full Complement Ball Set: | no |
| Tolerance Class: | ABEC 1 / P0 |
| Type of lubrication: | greased |
| Magnetic: | yes |
| Product weight: | 0,0011 kg |
