Technical Scribble

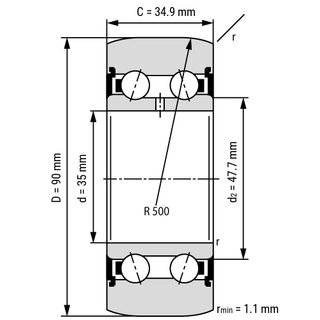

Track Roller LR5307 2RS TN 35x90x34.9 mm
The massive track roller LR5307-2RS-TN (NPPU) is based on a double-row angular ball bearing, can absorb extremely high radial and axial loads and compensate for minor misalignment and skew.
Technical Data
| Inside (mm): | 35 |
| Outside (mm): | 90 |
| Width (mm): | 34.9 |
| Tolerance for inside (mm): | 0/-0,012 |
| Tolerance for outside (mm): | 0/-0,015 |
| Tolerance for width (mm): | 0/-0,12 |
| Rows Of Balls: | double row |
| Seal: | 2RS |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Plastic |
| Tolerance Class: | ABEC 1 / P0 |
| Profiled Outer Ring: | no |
| Magnetic: | yes |
| Product weight: | 0,9700 kg |
Item number: LR5307-2RS-TN
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 20.83
pcs
Technical Scribble
Technical Data
| Inside (mm): | 35 |
| Outside (mm): | 90 |
| Width (mm): | 34.9 |
| Tolerance for inside (mm): | 0/-0,012 |
| Tolerance for outside (mm): | 0/-0,015 |
| Tolerance for width (mm): | 0/-0,12 |
| Rows Of Balls: | double row |
| Seal: | 2RS |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Plastic |
| Tolerance Class: | ABEC 1 / P0 |
| Profiled Outer Ring: | no |
| Magnetic: | yes |
| Product weight: | 0,9700 kg |
