Technical Scribble

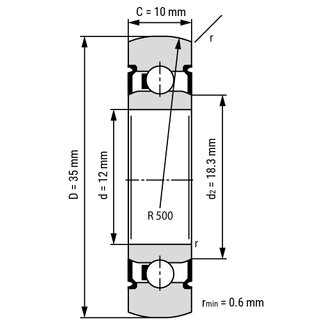

Track Roller LR201 2RS 12x35x10 mm
The track roller LR201-2RS (NPPU) is suitable for high radial and axial loads. It is based on a single-row deep groove ball bearing and can compensate for minor misalignment and skew.
Technical Data
| Inside (mm): | 12 |
| Outside (mm): | 35 |
| Width (mm): | 10 |
| Tolerance for inside (mm): | 0/-0,008 |
| Tolerance for outside (mm): | 0/-0,011 |
| Tolerance for width (mm): | 0/-0,12 |
| Rows Of Balls: | single row |
| Seal: | 2RS |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Tolerance Class: | ABEC 1 / P0 |
| Profiled Outer Ring: | no |
| Magnetic: | yes |
| Product weight: | 0,0500 kg |
Item number: LR201-2RS
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 2.16
pcs
