Tapered Roller Bearing LM603049 - LM603012 45.242x77.788x21.43 mm

The tapered roller bearing LM603049 - LM603012 in inch-size has tapered rollers as rolling elements and is suitable for high combined loads from the radial and axial directions.

Technical Data

Inside (mm):	45.242
Outside (mm):	77.788
Bearing Width (mm):	21.43
Width Outer Ring (mm):	16.667
Width Inner Ring (mm):	19.842
Tolerance for inside (mm):	0,012/0
Tolerance for outside (mm):	0,025/0
Tolerance for width of the bearing (mm):	0,2/0
Tolerance For Width Outer Ring (mm):	0/-0,12
Tolerance For Width Inner Ring (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,3800 kg

Item number: LM603049 - LM603012

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 15.26

pcs

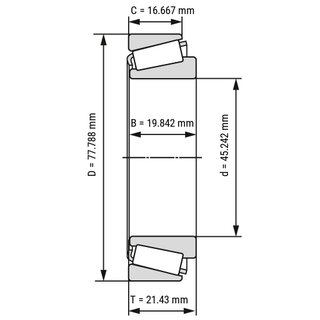

Technical Scribble

Technical Data

Inside (mm):	45.242
Outside (mm):	77.788
Bearing Width (mm):	21.43
Width Outer Ring (mm):	16.667
Width Inner Ring (mm):	19.842
Tolerance for inside (mm):	0,012/0
Tolerance for outside (mm):	0,025/0
Tolerance for width of the bearing (mm):	0,2/0
Tolerance For Width Outer Ring (mm):	0/-0,12
Tolerance For Width Inner Ring (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,3800 kg
