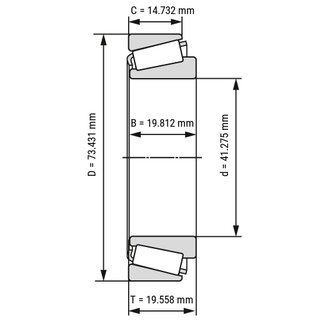

Tapered Roller Bearing LM501349 - LM501310 41.275x73.431x19.558 mm

The tapered roller bearing LM501349 - LM501310 in inch-size has tapered rollers as rolling elements and is suitable for high combined loads from the radial and axial directions.

Technical Data

Inside (mm):	41.275
Outside (mm):	73.431
Bearing Width (mm):	19.558
Width Outer Ring (mm):	14.732
Width Inner Ring (mm):	19.812
Tolerance for inside (mm):	0,012/0
Tolerance for outside (mm):	0,025/0
Tolerance for width of the bearing (mm):	0,2/0
Tolerance For Width Outer Ring (mm):	0/-0,12
Tolerance For Width Inner Ring (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,3400 kg

Item number: LM501349 - LM501310

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 8.07

pcs
