Technical Scribble

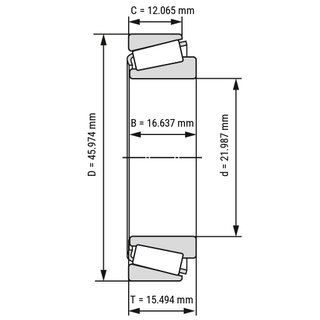

Tapered Roller Bearing LM12749 - LM12711 21.987x45.974x15.494 mm
The tapered roller bearing LM12749 - LM12711 in inch-size has tapered rollers as rolling elements and is suitable for high combined loads from the radial and axial directions.
Technical Data
| Inside (mm): | 21.987 |
| Outside (mm): | 45.974 |
| Bearing Width (mm): | 15.494 |
| Width Outer Ring (mm): | 12.065 |
| Width Inner Ring (mm): | 16.637 |
| Tolerance for inside (mm): | 0,012/0 |
| Tolerance for outside (mm): | 0,025/0 |
| Tolerance for width of the bearing (mm): | 0,2/0 |
| Tolerance For Width Outer Ring (mm): | 0/-0,12 |
| Tolerance For Width Inner Ring (mm): | 0/-0,12 |
| Seal: | open |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Rolling bearing steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 0,1200 kg |
Item number: LM12749 - LM12711
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 6.74
pcs
