Technical Scribble

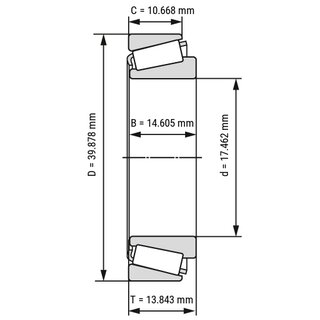

Tapered Roller Bearing LM11749 - LM11710 17.462x39.878x13.843 mm
The tapered roller bearing LM11749 - LM11710 in inch-size has tapered rollers as rolling elements and is suitable for high combined loads from the radial and axial directions.
Technical Data
| Inside (mm): | 17.462 |
| Outside (mm): | 39.878 |
| Bearing Width (mm): | 13.843 |
| Width Outer Ring (mm): | 10.668 |
| Width Inner Ring (mm): | 14.605 |
| Tolerance for inside (mm): | 0,012/0 |
| Tolerance for outside (mm): | 0,025/0 |
| Tolerance for width of the bearing (mm): | 0,2/0 |
| Tolerance For Width Outer Ring (mm): | 0/-0,12 |
| Tolerance For Width Inner Ring (mm): | 0/-0,12 |
| Seal: | open |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Rolling bearing steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 0,0900 kg |
Item number: LM11749 - LM11710
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 3.50
pcs
Technical Scribble
Technical Data
| Inside (mm): | 17.462 |
| Outside (mm): | 39.878 |
| Bearing Width (mm): | 13.843 |
| Width Outer Ring (mm): | 10.668 |
| Width Inner Ring (mm): | 14.605 |
| Tolerance for inside (mm): | 0,012/0 |
| Tolerance for outside (mm): | 0,025/0 |
| Tolerance for width of the bearing (mm): | 0,2/0 |
| Tolerance For Width Outer Ring (mm): | 0/-0,12 |
| Tolerance For Width Inner Ring (mm): | 0/-0,12 |
| Seal: | open |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Rolling bearing steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 0,0900 kg |
