Track Roller With Profiled Outer Ring LFR5207 30 2RS 30x80x29 mm

The track roller LFR5207-30-2RS (NPPU) with profiled outer ring has a raceway groove in the outer ring, which allows it to roll on a round profiled mating track. It is based on a double row angular ball bearing and is radially and axially highly resilient.

Technical Data

Inside (mm):	30
Outside (mm):	80
Width (mm):	29
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	double row
Seal:	2RS
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Profiled Outer Ring:	yes
Profile Form:	gothic
Magnetic:	yes
Product weight:	0,6190 kg

Item number: LFR5207-30-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 27.97

pcs

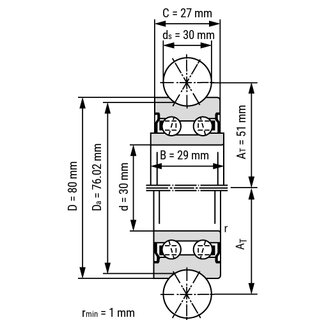

Technical Scribble

Technical Data

Inside (mm):	30
Outside (mm):	80
Width (mm):	29
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	double row
Seal:	2RS
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Profiled Outer Ring:	yes
Profile Form:	gothic
Magnetic:	yes
Product weight:	0,6190 kg
