Technical Scribble

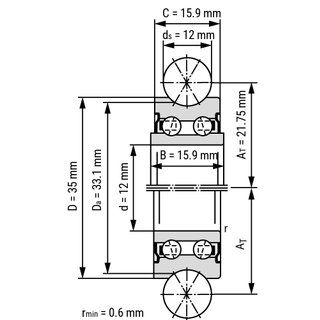

Track Roller With Profiled Outer Ring LFR5201 12 2RS TN 12x35x15.9 mm
The track roller LFR5201-12-2RS-TN (NPPU) with profiled outer ring has a raceway groove in the outer ring, which allows it to roll on a round profiled mating track. It is based on a double row angular ball bearing and is radially and axially highly resilient.
Technical Data
| Inside (mm): | 12 |
| Outside (mm): | 35 |
| Width (mm): | 15.9 |
| Tolerance for inside (mm): | 0/-0,008 |
| Tolerance for outside (mm): | 0/-0,011 |
| Tolerance for width (mm): | 0/-0,12 |
| Rows Of Balls: | double row |
| Seal: | 2RS |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Plastic |
| Tolerance Class: | ABEC 1 / P0 |
| Profiled Outer Ring: | yes |
| Profile Form: | gothic |
| Magnetic: | yes |
| Product weight: | 0,0683 kg |
Item number: LFR5201-12-2RS-TN
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 7.68
pcs
Technical Scribble
Technical Data
| Inside (mm): | 12 |
| Outside (mm): | 35 |
| Width (mm): | 15.9 |
| Tolerance for inside (mm): | 0/-0,008 |
| Tolerance for outside (mm): | 0/-0,011 |
| Tolerance for width (mm): | 0/-0,12 |
| Rows Of Balls: | double row |
| Seal: | 2RS |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Plastic |
| Tolerance Class: | ABEC 1 / P0 |
| Profiled Outer Ring: | yes |
| Profile Form: | gothic |
| Magnetic: | yes |
| Product weight: | 0,0683 kg |
