Track Roller With Profiled Outer Ring LFR50/5 4 2RS 5x16x8 mm

The track roller LFR50/5-4-2RS (NPPU) with profiled outer ring has a raceway groove in the outer ring, which allows it to roll on a round profiled mating track. It is based on a double row angular ball bearing and is radially and axially highly resilient.

Technical Data

Inside (mm):	5
Outside (mm):	16
Width (mm):	8
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	double row
Seal:	2RS
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Profiled Outer Ring:	yes
Profile Form:	gothic
Magnetic:	yes
Product weight:	0,0067 kg

Item number: LFR50/5-4-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 7.98

pcs

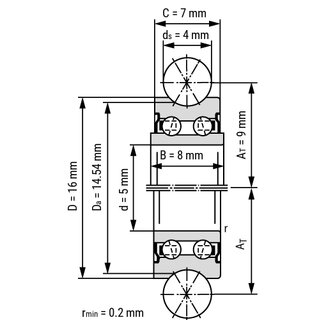

Technical Scribble

Technical Data

Inside (mm):	5
Outside (mm):	16
Width (mm):	8
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	double row
Seal:	2RS
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Profiled Outer Ring:	yes
Profile Form:	gothic
Magnetic:	yes
Product weight:	0,0067 kg

Technical Scribble
