Stud Type Track Roller KRVE16 PP MS 16x9x28 mm

Stable even in curves. The stud type track roller KRVE16-PP can withstand high loads while rolling on a mating track. It is based on a full complement needle bearing and suitable for high speeds. Due to the profiled outer surface of the outer ring, it can compensate for axial loads from minor misalignments and skews. It is fastened with eccentric ring.

Technical Data

Outside Cones (mm):	9
Outside Roller (mm):	16
Width (mm):	28
Tolerance for Outside Cones (mm):	0/-0,015
Tolerance for Outside Roller (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Seal:	PP
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0190 kg

Item number: KRVE16-PP-MS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 7.73

pcs

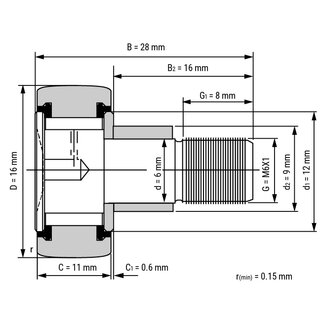

Technical Scribble
