Stud Type Track Roller KRV30 X PP 2HS 30x12x40 mm

Stable even in curves. The stud type track roller KRV30-X-PP can withstand high loads while rolling on a mating track. It is based on a full complement needle bearing and suitable for high speeds.

Technical Data

Outside Cones (mm):	12
Outside Roller (mm):	30
Width (mm):	40
Tolerance for Outside Cones (mm):	0/-0,018
Tolerance for Outside Roller (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Seal:	PP
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0910 kg

Item number: KRV30-X-PP-2HS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 13.16

pcs

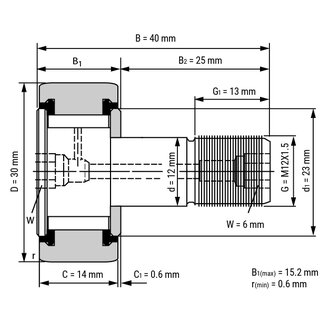

Technical Scribble
