Stud Type Track Roller KR22 PP 1HS 22x10x36mm

Stable even in curves. The stud type track roller KR22-PP can withstand high loads while rolling on a mating track. It is based on a needle bearing and suitable for high speeds. Due to the profiled outer surface of the outer ring, it can compensate for axial loads from minor misalignments and skews.

Technical Data

Outside Cones (mm):	10
Outside Roller (mm):	22
Width (mm):	36
Tolerance for Outside Cones (mm):	0/-0,015
Tolerance for Outside Roller (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Seal:	PP
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0450 kg

Item number: KR22-PP-1HS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 9.83

pcs

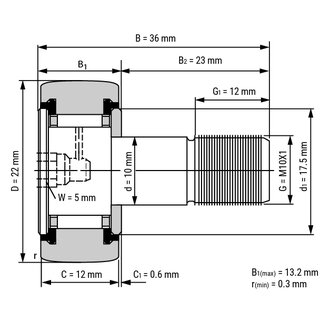

Technical Scribble

Technical Data

Outside Cones (mm):	10
Outside Roller (mm):	22
Width (mm):	36
Tolerance for Outside Cones (mm):	0/-0,015
Tolerance for Outside Roller (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Seal:	PP
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0450 kg
