Miniature Flange Housing Unit KFL005 - Shaft: 25 mm (Silver-Series)

The miniature flange bearing KFL005-ST is suitable for particularly small shaft diameters, high radial loads and for installation in various applications. The housing is made of zinc die-cast and sturdy.

Technical Data

Inside (mm):	25
Tolerance for inside (mm):	0,018/0
Shaft Fastening:	Grub Screws
Housing Type:	Flange
Grub Screw:	M8
Bearing No.:	K 005
Housing No.:	FL 005
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Zinc Die-Cast
Tolerance Class:	ABEC 1 / P0
Number of Mounting Holes:	2
Product weight:	0,2440 kg

Item number: KFL005

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 8.30

pcs

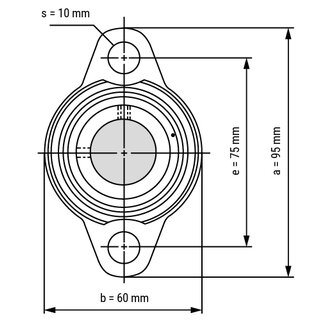

Technical Scribble

Technical Data

Inside (mm):	25
Tolerance for inside (mm):	0,018/0
Shaft Fastening:	Grub Screws
Housing Type:	Flange
Grub Screw:	M8
Bearing No.:	K 005
Housing No.:	FL 005
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Zinc Die-Cast
Tolerance Class:	ABEC 1 / P0
Number of Mounting Holes:	2
Product weight:	0,2440 kg
