Needle Roller and Cage Assembly K16x20x13 16x20x13 mm

The needle ring K16x20x13 consists exclusively of a cage with cylindrical rollers as rolling elements. It allows high radial loads and high speeds in the smallest space. Main dimensions according to DIN 5405-1.

Technical Data

Inside (mm):	16
Outside (mm):	20
Width (mm):	13
Tolerance for width (mm):	-0,2/-0,8
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0064 kg

Item number: K16x20x13

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 0.98

pcs

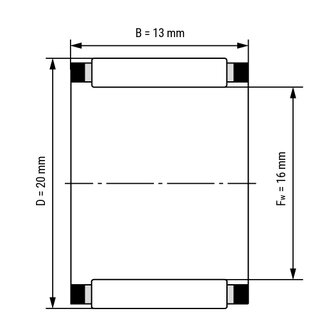

Technical Scribble

Technical Data

Inside (mm):	16
Outside (mm):	20
Width (mm):	13
Tolerance for width (mm):	-0,2/-0,8
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0064 kg

Technical Scribble

Needle Roller and Cage Assembly K16x20x13 16x20x13 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
