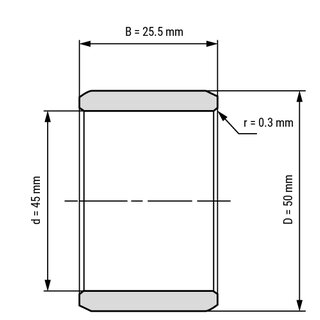

Inner Ring IR45x50x25.5 45x50x25.5 mm

The inner ring IR45x50x25.5 is combined with needle roller and cage assemblies, needle rollers, drawn cup needle rollers or drawn cup needle rollers with closed ends. Main dimensions according to DIN 620.

Technical Data

Inside (mm):	45
Outside (mm):	50
Width (mm):	25.5
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	-0,005/-0,019
Tolerance for width (mm):	0/-0,12
Ring Material:	Rolling bearing steel
Magnetic:	yes
Product weight:	0,0710 kg

Item number: IR45x50x25.5

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 8.34

pcs

Technical Scribble

Technical Data

Inside (mm):	45
Outside (mm):	50
Width (mm):	25.5
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	-0,005/-0,019
Tolerance for width (mm):	0/-0,12
Ring Material:	Rolling bearing steel
Magnetic:	yes
Product weight:	0,0710 kg

Technical Scribble

Inner Ring IR45x50x25.5 45x50x25.5 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
