Inner Ring IR40x45x20.5 40x45x20.5 mm

The inner ring IR40x45x20.5 is combined with needle roller and cage assemblies, needle rollers, drawn cup needle rollers or drawn cup needle rollers with closed ends. Main dimensions according to DIN 620.

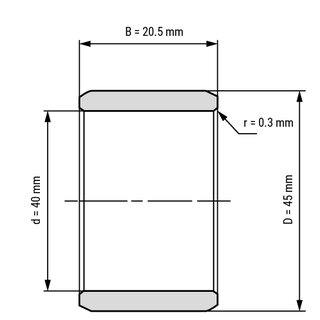

Technical Data

Inside (mm):	40
Outside (mm):	45
Width (mm):	20.5
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/0,009
Tolerance for width (mm):	0/-0,12
Ring Material:	Rolling bearing steel
Magnetic:	yes
Product weight:	0,0520 kg

Item number: IR40x45x20.5

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 8.40

pcs

Technical Scribble

Technical Data

Inside (mm):	40
Outside (mm):	45
Width (mm):	20.5
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/0,009
Tolerance for width (mm):	0/-0,12
Ring Material:	Rolling bearing steel
Magnetic:	yes
Product weight:	0,0520 kg

Technical Scribble
