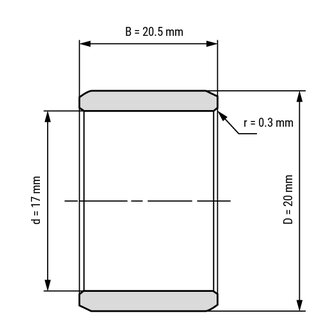

Inner Ring IR17x20x20.5 17x20x20.5 mm

The inner ring IR17x20x20.5 is combined with needle roller and cage assemblies, needle rollers, drawn cup needle rollers or drawn cup needle rollers with closed ends. Main dimensions according to DIN 620.

Technical Data

Inside (mm):	17
Outside (mm):	20
Width (mm):	20.5
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,012
Tolerance for width (mm):	0/-0,12
Ring Material:	Rolling bearing steel
Magnetic:	yes
Product weight:	0,0130 kg

Item number: IR17x20x20.5

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 2.70

pcs

Technical Scribble

Technical Data

Inside (mm):	17
Outside (mm):	20
Width (mm):	20.5
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,012
Tolerance for width (mm):	0/-0,12
Ring Material:	Rolling bearing steel
Magnetic:	yes
Product weight:	0,0130 kg
