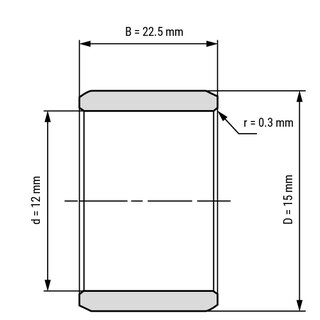

Inner Ring IR12x15x22.5 12x15x22.5 mm

The inner ring IR12x15x22.5 is combined with needle roller and cage assemblies, needle rollers, drawn cup needle rollers or drawn cup needle rollers with closed ends. Main dimensions according to DIN 620.

Technical Data

Inside (mm):	12
Outside (mm):	15
Width (mm):	22.5
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	-0,004/-0,018
Tolerance for width (mm):	0/-0,12
Ring Material:	Rolling bearing steel
Magnetic:	yes
Product weight:	0,0110 kg

Item number: IR12x15x22.5

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 2.76

pcs

Technical Scribble

Technical Data

Inside (mm):	12
Outside (mm):	15
Width (mm):	22.5
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	-0,004/-0,018
Tolerance for width (mm):	0/-0,12
Ring Material:	Rolling bearing steel
Magnetic:	yes
Product weight:	0,0110 kg

Technical Scribble

Inner Ring IR12x15x22.5 12x15x22.5 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
