Tapered Roller Bearing HM807046 - HM807010 50.8x104.775x36.512 mm

The tapered roller bearing HM807046 - HM807010 in inch-size has tapered rollers as rolling elements and is suitable for high combined loads from the radial and axial directions.

Technical Data

Inside (mm):	50.8
Outside (mm):	104.775
Bearing Width (mm):	36.512
Width Outer Ring (mm):	28.575
Width Inner Ring (mm):	36.512
Tolerance for inside (mm):	0,012/0
Tolerance for outside (mm):	0,025/0
Tolerance for width of the bearing (mm):	0,2/0
Tolerance For Width Outer Ring (mm):	0/-0,15
Tolerance For Width Inner Ring (mm):	0/-0,15
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	1,4700 kg

Item number: HM807046 - HM807010

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 20.16

pcs

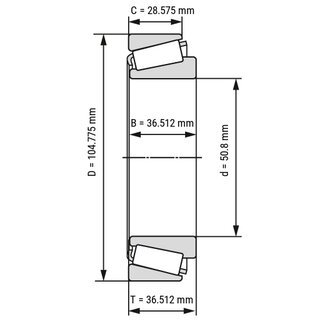

Technical Scribble

Technical Data

Inside (mm):	50.8
Outside (mm):	104.775
Bearing Width (mm):	36.512
Width Outer Ring (mm):	28.575
Width Inner Ring (mm):	36.512
Tolerance for inside (mm):	0,012/0
Tolerance for outside (mm):	0,025/0
Tolerance for width of the bearing (mm):	0,2/0
Tolerance For Width Outer Ring (mm):	0/-0,15
Tolerance For Width Inner Ring (mm):	0/-0,15
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	1,4700 kg

Technical Scribble

Tapered Roller Bearing HM807046 - HM807010 50.8x104.775x36.512 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
