Tapered Roller Bearing HM804849 - HM804810 48.412x95.25x30.162 mm

The tapered roller bearing HM804849 - HM804810 in inch-size has tapered rollers as rolling elements and is suitable for high combined loads from the radial and axial directions.

Technical Data

Inside (mm):	48.412
Outside (mm):	95.25
Bearing Width (mm):	30.162
Width Outer Ring (mm):	23.02
Width Inner Ring (mm):	29.37
Tolerance for inside (mm):	0,012/0
Tolerance for outside (mm):	0,025/0
Tolerance for width of the bearing (mm):	0,2/0
Tolerance For Width Outer Ring (mm):	0/-0,12
Tolerance For Width Inner Ring (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,9600 kg

Item number: HM804849 - HM804810

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 18.47

pcs

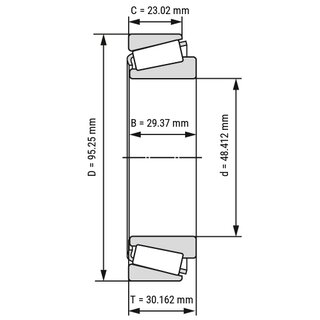

Technical Scribble
