Tapered Roller Bearing HM218248 - HM218210 89.974x146.975x40 mm

The tapered roller bearing HM218248 - HM218210 in inch-size has tapered rollers as rolling elements and is suitable for high combined loads from the radial and axial directions.

Technical Data

Inside (mm):	89.974
Outside (mm):	146.975
Bearing Width (mm):	40
Width Outer Ring (mm):	32.5
Width Inner Ring (mm):	40
Tolerance for inside (mm):	0,025/0
Tolerance for outside (mm):	0,025/0
Tolerance for width of the bearing (mm):	0,2/0
Tolerance For Width Outer Ring (mm):	0/-0,2
Tolerance For Width Inner Ring (mm):	0/-0,2
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	2,5200 kg

Item number: HM218248 - HM218210

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 38.40

pcs

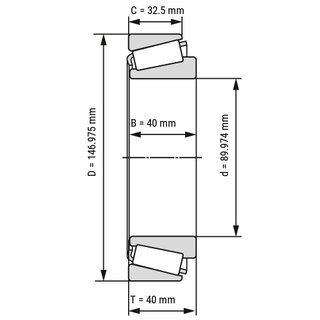

Technical Scribble

Technical Data

Inside (mm):	89.974
Outside (mm):	146.975
Bearing Width (mm):	40
Width Outer Ring (mm):	32.5
Width Inner Ring (mm):	40
Tolerance for inside (mm):	0,025/0
Tolerance for outside (mm):	0,025/0
Tolerance for width of the bearing (mm):	0,2/0
Tolerance For Width Outer Ring (mm):	0/-0,2
Tolerance For Width Inner Ring (mm):	0/-0,2
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	2,5200 kg
