Drawn Cup Needle Roller Bearing HK 3518 RS / HK3518 RS 35x42x18 mm

The needle sleeve HK3518-RS is a small needle roller bearing without inner ring and can be placed directly on the shaft. It is suitable for absorbing high radial forces in the smallest space. Main dimensions according to DIN 618-1.

Technical Data

Inside (mm):	35
Outside (mm):	42
Width (mm):	18
Tolerance for width (mm):	0/-0,3
Seal:	RS
Ring Material:	Rolling bearing steel
Inner Ring:	no
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0390 kg

Item number: HK3518-RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 3.25

pcs

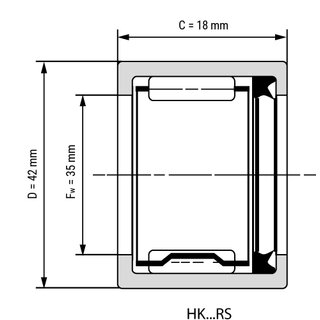

Technical Scribble
