Drawn Cup Needle Roller Bearing HK 2018 2RS / HK2018 2RS 20x26x18 mm

The needle sleeve HK2018-2RS is a small needle roller bearing without inner ring and can be placed directly on the shaft. It is suitable for absorbing high radial forces in the smallest space. Main dimensions according to DIN 618-1.

Technical Data

Inside (mm):	20
Outside (mm):	26
Width (mm):	18
Tolerance for width (mm):	0/-0,3
Seal:	2RS
Ring Material:	Rolling bearing steel
Inner Ring:	no
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0220 kg

Item number: HK2018-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 2.15

pcs

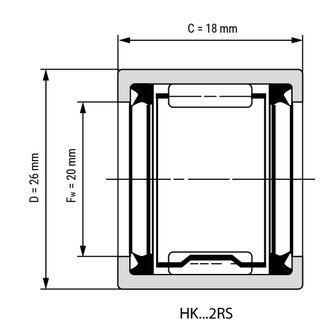

Technical Scribble

Technical Data

Inside (mm):	20
Outside (mm):	26
Width (mm):	18
Tolerance for width (mm):	0/-0,3
Seal:	2RS
Ring Material:	Rolling bearing steel
Inner Ring:	no
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0220 kg
