Drawn Cup Needle Roller Bearing HK 1216 2RS / HK1216 2RS 12x18x16 mm

The needle sleeve HK1216-2RS is a small needle roller bearing without inner ring and can be placed directly on the shaft. It is suitable for absorbing high radial forces in the smallest space. Main dimensions according to DIN 618-1.

Technical Data

Inside (mm):	12
Outside (mm):	18
Width (mm):	16
Tolerance for width (mm):	0/-0,3
Seal:	2RS
Ring Material:	Rolling bearing steel
Inner Ring:	no
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0110 kg

Item number: HK1216-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 0.94

pcs

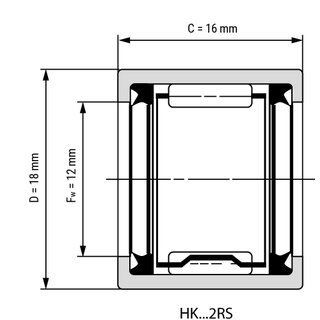

Technical Scribble
