Drawn Cup Needle Roller Bearing HK 0808 open / HK0808 8x12x8 mm

The needle sleeve HK0808 is a small needle roller bearing without inner ring and can be placed directly on the shaft. It is suitable for absorbing high radial forces in the smallest space. Main dimensions according to DIN 618-1.

Technical Data

Inside (mm):	8
Outside (mm):	12
Width (mm):	8
Tolerance for width (mm):	0/-0,3
Seal:	open
Ring Material:	Rolling bearing steel
Inner Ring:	no
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0024 kg

Item number: HK0808

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 0.68

pcs

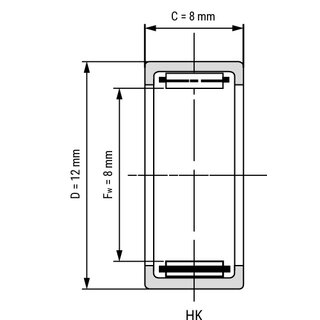

Technical Scribble

Technical Data

Inside (mm):	8
Outside (mm):	12
Width (mm):	8
Tolerance for width (mm):	0/-0,3
Seal:	open
Ring Material:	Rolling bearing steel
Inner Ring:	no
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0024 kg

Technical Scribble

Drawn Cup Needle Roller Bearing HK 0808 open / HK0808 8x12x8 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
