Radial Spherical Plain Bearing - Requiring Maintenance GEG50ES open 50x90x56 mm

The spherical plain radial bearing GEG50ES without seals requires maintenance and has a wider inner ring. It has a sliding contact surface combination steel/steel and is suitable for heavy static loads as well as for shock loads. The main dimensions correspond to DIN 648 — series E (DIN = German industrial norm).

Technical Data

Inside (mm):	50
Outside (mm):	90
Width (mm):	56
Tolerance for inside (mm):	0,025/0
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,25
Extended Inner Ring:	nein
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Sliding Contact Surface Combination:	steel/steel
Product weight:	1,4000 kg

Item number: GEG50ES

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 25.01

pcs

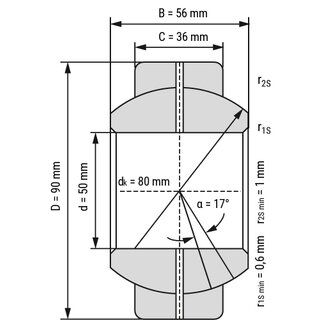

Technical Scribble

Technical Data

Inside (mm):	50
Outside (mm):	90
Width (mm):	56
Tolerance for inside (mm):	0,025/0
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,25
Extended Inner Ring:	nein
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Sliding Contact Surface Combination:	steel/steel
Product weight:	1,4000 kg
