Radial-Spherical Plain Bearing - Requiring Maintenance GEG25ES 2RS 25x47x28 mm

The spherical plain radial bearing GEG25ES-2RS requires maintenance and has a wider inner ring. It has a sliding contact surface combination steel/steel and is suitable for heavy static loads as well as for shock loads. The main dimensions correspond to DIN 648 — series E (DIN = German industrial norm).

Technical Data

Inside (mm):	25
Outside (mm):	47
Width (mm):	28
Tolerance for inside (mm):	0,021/0
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,21
Extended Inner Ring:	nein
Seal:	2RS
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Sliding Contact Surface Combination:	steel/steel
Product weight:	0,3860 kg

Item number: GEG25ES-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 6.36

pcs

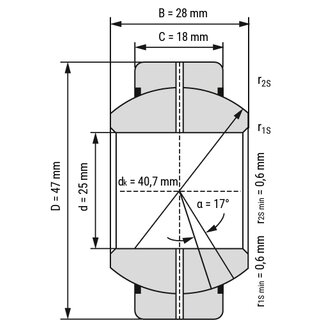

Technical Scribble
