Radial Spherical Plain Bearing - Requiring Maintenance GEG15ES open 15x30x16 mm

The spherical plain radial bearing GEG15ES without seals requires maintenance and has a wider inner ring. It has a sliding contact surface combination steel/steel and is suitable for heavy static loads as well as for shock loads. The main dimensions correspond to DIN 648 — series E (DIN = German industrial norm).

Technical Data

Inside (mm):	15
Outside (mm):	30
Width (mm):	16
Tolerance for inside (mm):	0,018/0
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,18
Extended Inner Ring:	nein
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Sliding Contact Surface Combination:	steel/steel
Product weight:	0,0460 kg

Item number: GEG15ES

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 4.84

pcs

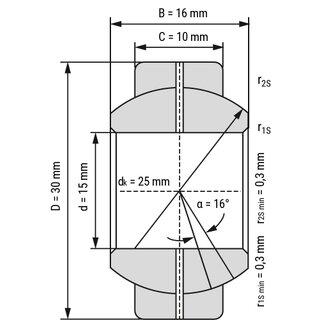

Technical Scribble

Technical Data

Inside (mm):	15
Outside (mm):	30
Width (mm):	16
Tolerance for inside (mm):	0,018/0
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,18
Extended Inner Ring:	nein
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Sliding Contact Surface Combination:	steel/steel
Product weight:	0,0460 kg

Technical Scribble
