Radial Spherical Plain Bearing - Requiring Maintenance GEEW16ES open 16x28x16 mm

The Spherical Plain Radial Bearing GEEW16ES requires maintenance and has an extended inner ring on both sides. It has a sliding contact surface combination steel/steel and is suitable for heavy static loads as well as for shock loads.

Technical Data

Inside (mm):	16
Outside (mm):	28
Width (mm):	16
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Extended Inner Ring:	both sides
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Sliding Contact Surface Combination:	steel/steel
Product weight:	0,0300 kg

Item number: GEEW16ES

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 4.49

pcs

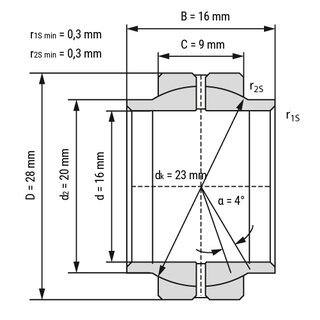

Technical Scribble

Technical Data

Inside (mm):	16
Outside (mm):	28
Width (mm):	16
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Extended Inner Ring:	both sides
Seal:	open
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Sliding Contact Surface Combination:	steel/steel
Product weight:	0,0300 kg

Technical Scribble

Radial Spherical Plain Bearing - Requiring Maintenance GEEW16ES open 16x28x16 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
