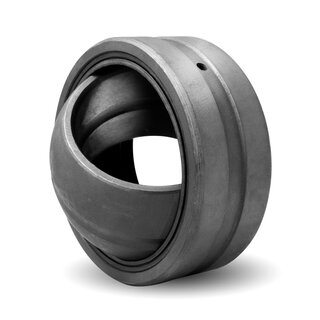

Spherical Plain Bearing - Requiring Maintenance GE15ES 2RS 15x26x12 mm

The sealed spherical plain radial bearing GE15ES-2RS requires maintenance. It has a sliding contact surface combination steel/steel and is suitable for heavy static loads as well as for shock loads.

Technical Data

Inside (mm):	15
Outside (mm):	26
Width (mm):	12
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Extended Inner Ring:	nein
Seal:	2RS
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Sliding Contact Surface Combination:	steel/steel
Product weight:	0,0220 kg

Item number: GE15ES-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 2.77

pcs

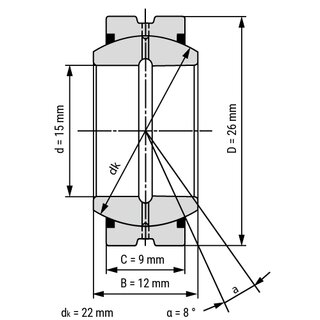

Technical Scribble

Technical Data

Inside (mm):	15
Outside (mm):	26
Width (mm):	12
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Extended Inner Ring:	nein
Seal:	2RS
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Sliding Contact Surface Combination:	steel/steel
Product weight:	0,0220 kg

Technical Scribble
