Spherical Plain Bearing - Requiring Maintenance GE140ES 2RS 140x210x90 mm

The sealed spherical plain radial bearing GE140ES-2RS requires maintenance. It has a sliding contact surface combination steel/steel and is suitable for heavy static loads as well as for shock loads.

Technical Data

Inside (mm):	140
Outside (mm):	210
Width (mm):	90
Tolerance for inside (mm):	0/-0,025
Tolerance for outside (mm):	0/-0,03
Tolerance for width (mm):	0/-0,25
Extended Inner Ring:	nein
Seal:	2RS
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Sliding Contact Surface Combination:	steel/steel
Product weight:	11,0000 kg

Item number: GE140ES-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 220.60

pcs

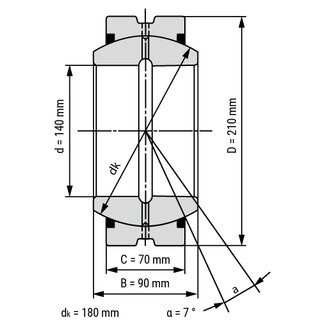

Technical Scribble

Technical Data

Inside (mm):	140
Outside (mm):	210
Width (mm):	90
Tolerance for inside (mm):	0/-0,025
Tolerance for outside (mm):	0/-0,03
Tolerance for width (mm):	0/-0,25
Extended Inner Ring:	nein
Seal:	2RS
Ring Material:	Rolling bearing steel
Maintenance:	Requiring Maintenance
Tolerance Class:	ABEC 1 / P0
Sliding Contact Surface Combination:	steel/steel
Product weight:	11,0000 kg
