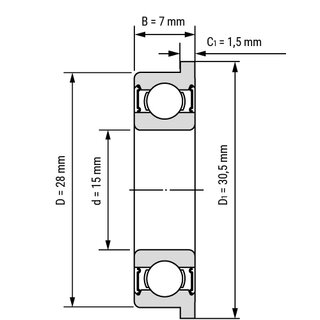

Technical Scribble
Deep Groove Ball Bearing with a Flanged Outer Ring F6902 2RS / F 6902 2RS 15x28x7 mm
Narrow, light and with very good spinning characteristics. The deep groove ball bearing F-6902-2RS is narrow and can also be used with limited space. The low weight allows for very high speeds. With the flange, it can be fixed axially, e.g. in bore holes.
Technical Data
| Inside (mm): | 15 |
| Outside (mm): | 28 |
| Width (mm): | 7 |
| Tolerance for inside (mm): | 0/-0,008 |
| Tolerance for outside (mm): | 0/-0,009 |
| Tolerance for width (mm): | 0/-0,12 |
| Tolerance for flange-outside (mm): | 0,39/-0,062 |
| Flange (mm): | 30.5 |
| Rows Of Balls: | single row |
| Seal: | 2RS |
| Internal Clearance: | CN (Standard) |
| Flange: | yes |
| Slot & Snap Ring: | no |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Sealing material: | NBR |
| Full Complement Ball Set: | no |
| Tolerance Class: | ABEC 1 / P0 |
| Type of lubrication: | greased |
| Magnetic: | yes |
| Lifetime lubricated: | yes |
| Product weight: | 0,0190 kg |
Item number: F-6902-2RS
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 2.60
pcs
Technical Scribble
Technical Data
| Inside (mm): | 15 |
| Outside (mm): | 28 |
| Width (mm): | 7 |
| Tolerance for inside (mm): | 0/-0,008 |
| Tolerance for outside (mm): | 0/-0,009 |
| Tolerance for width (mm): | 0/-0,12 |
| Tolerance for flange-outside (mm): | 0,39/-0,062 |
| Flange (mm): | 30.5 |
| Rows Of Balls: | single row |
| Seal: | 2RS |
| Internal Clearance: | CN (Standard) |
| Flange: | yes |
| Slot & Snap Ring: | no |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Sealing material: | NBR |
| Full Complement Ball Set: | no |
| Tolerance Class: | ABEC 1 / P0 |
| Type of lubrication: | greased |
| Magnetic: | yes |
| Lifetime lubricated: | yes |
| Product weight: | 0,0190 kg |
