Miniature Flanged Ball Bearing F 688 open / F688 open oiled 8x16x5 mm

For use in special conditions. The miniature ball bearing F-688 is small and suitable for installation with limited space and on thin shafts. With the flange, it can be fixed axially, e.g. in bore holes. It can withstand very high speeds. It has metric special dimensions.

Technical Data

Inside (mm):	8
Outside (mm):	16
Width (mm):	5
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Tolerance for flange-outside (mm):	0,27/-0,043
Flange (mm):	18
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	yes
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,0036 kg

Item number: F-688-OIL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 2.21

pcs

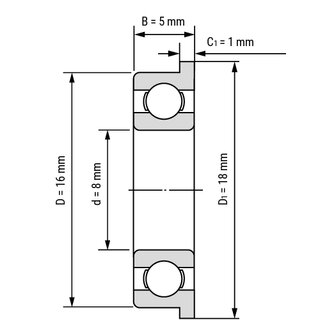

Technical Scribble

Technical Data

Inside (mm):	8
Outside (mm):	16
Width (mm):	5
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Tolerance for flange-outside (mm):	0,27/-0,043
Flange (mm):	18
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	yes
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,0036 kg

Technical Scribble

Miniature Flanged Ball Bearing F 688 open / F688 open oiled 8x16x5 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
