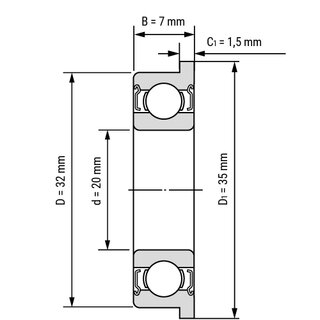

Technical Scribble
Deep Groove Ball Bearing with a Flanged Outer Ring F 6804 ZZ / 2Z / F61804 ZZ / 2Z 20x32x7 mm
Very narrow, very light and with extremely good spinning characteristics. The deep groove ball bearing F-6804-ZZ / 2Z is very narrow and can also be used with limited space. The low weight allows for extremely high speeds. With the flange, it can be fixed axially, e.g. in bore holes.
Technical Data
| Inside (mm): | 20 |
| Outside (mm): | 32 |
| Width (mm): | 7 |
| Tolerance for inside (mm): | 0/-0,01 |
| Tolerance for outside (mm): | 0/-0,011 |
| Tolerance for width (mm): | 0/-0,12 |
| Tolerance for flange-outside (mm): | 0,39/-0,062 |
| Flange (mm): | 35 |
| Rows Of Balls: | single row |
| Seal: | ZZ |
| Internal Clearance: | CN (Standard) |
| Flange: | yes |
| Slot & Snap Ring: | no |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Sealing material: | Sheet Steel |
| Full Complement Ball Set: | no |
| Tolerance Class: | ABEC 1 / P0 |
| Type of lubrication: | greased |
| Magnetic: | yes |
| Lifetime lubricated: | yes |
| Product weight: | 0,0198 kg |
Item number: F-6804-ZZ
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 2.69
pcs
