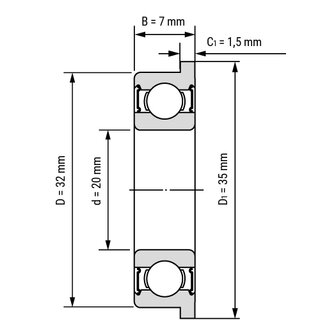

Deep Groove Ball Bearing with a Flanged Outer Ring F 6804 2RS / F61804 2RS 20x32x7 mm

Very narrow, very light and with extremely good spinning characteristics. The deep groove ball bearing F-6804-2RS is very narrow and can also be used with limited space. The low weight allows for extremely high speeds. With the flange, it can be fixed axially, e.g. in bore holes.

Technical Data

Inside (mm):	20
Outside (mm):	32
Width (mm):	7
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Tolerance for flange-outside (mm):	0,39/-0,062
Flange (mm):	35
Rows Of Balls:	single row
Seal:	2RS
Internal Clearance:	CN (Standard)
Flange:	yes
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Sealing material:	NBR
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,0180 kg

Item number: F-6804-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 2.69

pcs
