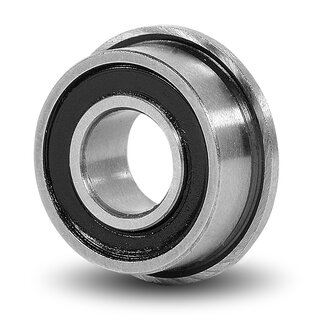

Miniature Flanged Ball Bearing F 624 2RS / F624 2RS 4x13x5 mm
For use in special conditions. The miniature ball bearing F-624-2RS is small and suitable for installation with limited space and on thin shafts. With the flange, it can be fixed axially, e.g. in bore holes. It can withstand very high speeds. It has metric special dimensions.
Technical Data
| Inside (mm): | 4 |
| Outside (mm): | 13 |
| Width (mm): | 5 |
| Tolerance for inside (mm): | 0/-0,008 |
| Tolerance for outside (mm): | 0/-0,008 |
| Tolerance for width (mm): | 0/-0,12 |
| Tolerance for flange-outside (mm): | 0,27/-0,043 |
| Flange (mm): | 15 |
| Flange Width (mm): | 1 |
| Rows Of Balls: | single row |
| Seal: | 2RS |
| Internal Clearance: | CN (Standard) |
| Flange: | yes |
| Slot & Snap Ring: | no |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Sealing material: | NBR |
| Full Complement Ball Set: | no |
| Tolerance Class: | ABEC 1 / P0 |
| Type of lubrication: | greased |
| Magnetic: | yes |
| Lifetime lubricated: | yes |
| Product weight: | 0,0034 kg |
Item number: F-624-2RS
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 2.01
pcs
