Technical Scribble

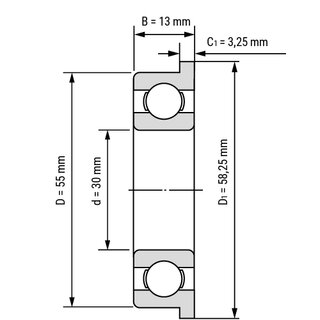

Deep Groove Ball Bearing with a Flanged Outer Ring F 6006 / F6006 open oiled 30x55x13 mm
Lightweight, stable and with good spinning characteristics. The deep groove ball bearing F-6006 is a true all-rounder and, due to its balanced properties, it is suitable for a variety of applications. With the flange, it can be fixed axially, e.g. in bore holes. Main dimensions according to DIN 625-1.
Technical Data
| Inside (mm): | 30 |
| Outside (mm): | 55 |
| Width (mm): | 13 |
| Tolerance for inside (mm): | 0/-0,01 |
| Tolerance for outside (mm): | 0/-0,013 |
| Tolerance for width (mm): | 0/-0,12 |
| Tolerance for flange-outside (mm): | 0,46/-0,074 |
| Flange (mm): | 58.25 |
| Rows Of Balls: | single row |
| Seal: | open |
| Internal Clearance: | CN (Standard) |
| Flange: | yes |
| Slot & Snap Ring: | no |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Full Complement Ball Set: | no |
| Tolerance Class: | ABEC 1 / P0 |
| Type of lubrication: | oiled |
| Magnetic: | yes |
| Product weight: | 0,1160 kg |
Item number: F-6006-OIL
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 3.89
pcs
Technical Scribble
Technical Data
| Inside (mm): | 30 |
| Outside (mm): | 55 |
| Width (mm): | 13 |
| Tolerance for inside (mm): | 0/-0,01 |
| Tolerance for outside (mm): | 0/-0,013 |
| Tolerance for width (mm): | 0/-0,12 |
| Tolerance for flange-outside (mm): | 0,46/-0,074 |
| Flange (mm): | 58.25 |
| Rows Of Balls: | single row |
| Seal: | open |
| Internal Clearance: | CN (Standard) |
| Flange: | yes |
| Slot & Snap Ring: | no |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Full Complement Ball Set: | no |
| Tolerance Class: | ABEC 1 / P0 |
| Type of lubrication: | oiled |
| Magnetic: | yes |
| Product weight: | 0,1160 kg |
