Technical Scribble

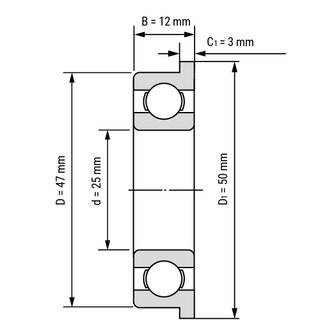

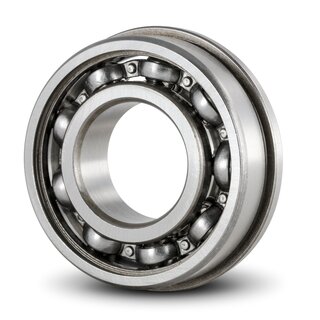

Deep Groove Ball Bearing with a Flanged Outer Ring F 6005 / F6005 open oiled 25x47x12 mm
Lightweight, stable and with good spinning characteristics. The deep groove ball bearing F-6005 is a true all-rounder and, due to its balanced properties, it is suitable for a variety of applications. With the flange, it can be fixed axially, e.g. in bore holes. Main dimensions according to DIN 625-1.
Technical Data
| Inside (mm): | 25 |
| Outside (mm): | 47 |
| Width (mm): | 12 |
| Tolerance for inside (mm): | 0/-0,01 |
| Tolerance for outside (mm): | 0/-0,011 |
| Tolerance for width (mm): | 0/-0,12 |
| Tolerance for flange-outside (mm): | 0,39/-0,062 |
| Flange (mm): | 50 |
| Flange Width (mm): | 3 |
| Rows Of Balls: | single row |
| Seal: | open |
| Internal Clearance: | CN (Standard) |
| Flange: | yes |
| Slot & Snap Ring: | no |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Full Complement Ball Set: | no |
| Tolerance Class: | ABEC 1 / P0 |
| Type of lubrication: | oiled |
| Magnetic: | yes |
| Product weight: | 0,0800 kg |
Item number: F-6005-OIL
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 3.29
pcs
Technical Scribble
Technical Data
| Inside (mm): | 25 |
| Outside (mm): | 47 |
| Width (mm): | 12 |
| Tolerance for inside (mm): | 0/-0,01 |
| Tolerance for outside (mm): | 0/-0,011 |
| Tolerance for width (mm): | 0/-0,12 |
| Tolerance for flange-outside (mm): | 0,39/-0,062 |
| Flange (mm): | 50 |
| Flange Width (mm): | 3 |
| Rows Of Balls: | single row |
| Seal: | open |
| Internal Clearance: | CN (Standard) |
| Flange: | yes |
| Slot & Snap Ring: | no |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Full Complement Ball Set: | no |
| Tolerance Class: | ABEC 1 / P0 |
| Type of lubrication: | oiled |
| Magnetic: | yes |
| Product weight: | 0,0800 kg |
