Single Thrust / Magneto Ball Bearing E11 / EN11 11x32x7 mm

Specialist for special requirements. The single thrust ball bearing E11 has only one shoulder and can be disassembled. Therefore, it is particularly easy to assemble. It can withstand high speeds. Main dimensions according to DIN 615.

Technical Data

Inside (mm):	11
Outside (mm):	32
Width (mm):	7
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0,011/0
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Flange:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Brass
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0290 kg

Item number: E11

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 17.23

pcs

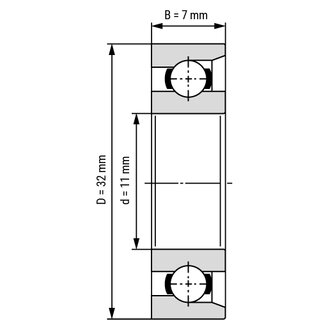

Technical Scribble

Technical Data

Inside (mm):	11
Outside (mm):	32
Width (mm):	7
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0,011/0
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Flange:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Brass
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0290 kg

Technical Scribble

Single Thrust / Magneto Ball Bearing E11 / EN11 11x32x7 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
