Radial Insert Ball Bearing (Maintenance-Free) CS209 2RS - Shaft: 45 mm

The bearing insert CS209 2RS can be easily attached to the shaft or inserted in a housing. It is suitable for high radial loads, high speeds and is maintenance-free. Main dimensions according to DIN 626-1.

Technical Data

Inside (mm):	45
Outside (mm):	85
Width (mm):	19
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Shaft Fastening:	Tight Fit
Extended Inner Ring:	nein
Seal:	2RS
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,4000 kg

Item number: CS209-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 15.54

pcs

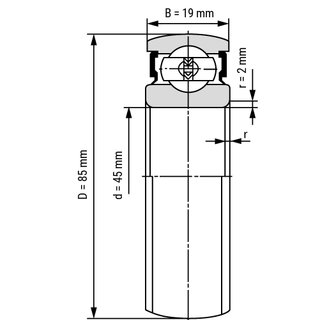

Technical Scribble
