Technical Scribble

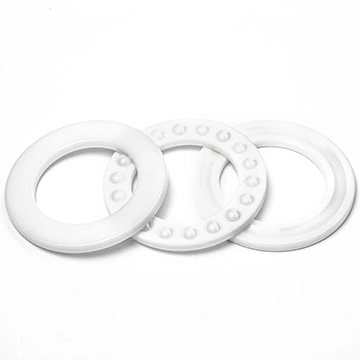

CEF4-9MZR 4 mmx9 mmx4 mm
Technical Data
| Product Number | CEF4-9MZR |
| URL Product | cef4-9mzr |
| Part Number | CEF4-9MZR |
| System of Measurement | Metric |
| Bearing Type | Ball |
| Washers Type | grooved raceway |
| For Load Direction | Thrust |
| Bore Dia | 4 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 9 mm |
| Outer Dia Tolerance | -0.008mm to 0 |
| Housing Washer ID | 4.2 mm |
| Shaft Washer OD | 8.8 mm |
| Height | 4 mm |
| Height Tolerance | -0.12mm to 0 |
| Washer Material | Zirconia Ceramic |
| Ball Material | Zirconia Ceramic |
| Cage Material | PEEK |
| Dynamic Thrust Load | 54 lbf |
| Static Thrust Load | 36 lbf |
| Max Speed (X1000 rpm) | 5.6 |
| Lubrication | Required |
| Temperature Range | -176 to 752 °F |
| RoHS | Compliant |
| REACH | Compliant |
| Ball Dia | 1.588 mm |
| Ball Qty | 6 |
| Weight | 0.001 kg |
| technology url | /technology/ball-bearings/ |
| Dynamic Thrust Load | 40-200 lbf |
| Static Thrust Load | 0-40 lbf |
| Max Speed (X1000 rpm) | 4-6 |
Item number: CEF4-9MZR
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
price:Inquiry
pcs
